17' x 96" Lock-N-Roll Transfer Trailer Kit - No Bows
Item #: RL6KT17
| Qty | Unit price |
|---|---|
| Each | |
| 1 | $2,550.00 |
Expected Ship Date:
5/21/2024
*Expected Ship Date is estimated
This product is sold as a kit. To customize for your needs please call 1-800-248-7717

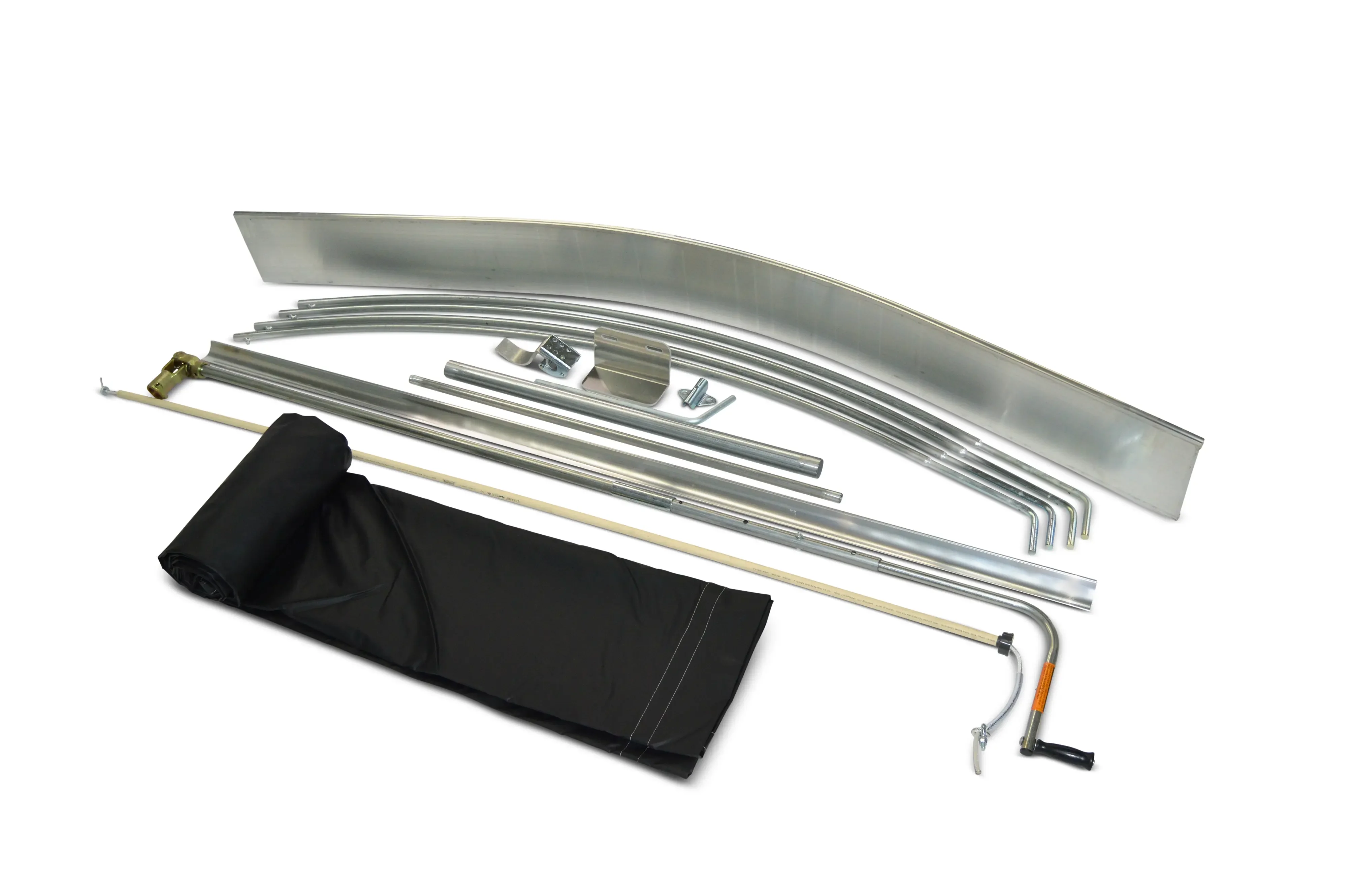

This is a complete Lock-N-Roll side roll tarp system that measures 17’ x 96”. It can be used on a variety of dump truck trailers. Tarp is waterproof, but entire system is not. Product weight 240 lbs. It does not come with bows.
RL6KT17 Parts Include:
R0108:Rollpipe per Ft. (Qty: 21ft)
R0109S:U-Clamp w/Screw (Qty: 7)
R0112LRF:Crank - LNR 54 Flex (Qty: 1)
R0112RH:Crank Retain J Hook Steel Comp (Qty: 4)
R0112WL:Crank- Wire Lock Pin for UJ (Qty: 1)
R0115:Tarp Strap 21" (Qty: 4)
R0118:Anchor Pipe per Ft (Qty: 17ft)
R0118C:End Cap for Anchor Pipe (Qty: 2)
R0120E6:EZ Off Tarp Stop 6"Complete (Qty: 3)
R0141W:Spline Weldment (Qty: 1)
R0144A:Poly Roll Prot. Set w/Hardware (Qty: 1)
R0160:3/8 x 1 1/2 Type 23 T/C (Qty: 29)
R0161:1/4 x 3/4 Tek Phillips (Qty: 2)
R0170:Latch Plate - per ft. (Qty: 18ft)
R0171:Roll Return Assembly Complete (Qty: 1)
R0181:NoseBonnet w/Masbo Metstrp 96" (Qty: 1)
RL617: 17' x 96 Lock-N-Roll Tarp Only (Qty: 1)
RL6KT17 Parts Include:
R0108:Rollpipe per Ft. (Qty: 21ft)
R0109S:U-Clamp w/Screw (Qty: 7)
R0112LRF:Crank - LNR 54 Flex (Qty: 1)
R0112RH:Crank Retain J Hook Steel Comp (Qty: 4)
R0112WL:Crank- Wire Lock Pin for UJ (Qty: 1)
R0115:Tarp Strap 21" (Qty: 4)
R0118:Anchor Pipe per Ft (Qty: 17ft)
R0118C:End Cap for Anchor Pipe (Qty: 2)
R0120E6:EZ Off Tarp Stop 6"Complete (Qty: 3)
R0141W:Spline Weldment (Qty: 1)
R0144A:Poly Roll Prot. Set w/Hardware (Qty: 1)
R0160:3/8 x 1 1/2 Type 23 T/C (Qty: 29)
R0161:1/4 x 3/4 Tek Phillips (Qty: 2)
R0170:Latch Plate - per ft. (Qty: 18ft)
R0171:Roll Return Assembly Complete (Qty: 1)
R0181:NoseBonnet w/Masbo Metstrp 96" (Qty: 1)
RL617: 17' x 96 Lock-N-Roll Tarp Only (Qty: 1)
